ASF Tuning: ECU Tuning Files Explained
At ASF Tuning, we specialize in ECU (Engine Control Unit) tuning files tailored to enhance your vehicle's performance and efficiency. Whether you're a professional tuner or an enthusiast, understanding ECU files is key to unlocking the full potential of your engine.
How ECU Tuning Files Are Read?
- Maps and tables for fuel injection, ignition timing, boost pressure, and more.
- Files are in hexadecimal format, like .bin, .cod, or .dtf.
- File sizes often range from 512KB to 2048KB depending on ECU memory.
- Contains program code, calibration data, and vehicle-specific parameters.
- May be encrypted by manufacturers to prevent unauthorized tuning.
ECU Reading Methods
1. OBD Reading
- Virtual Read: Downloads original file from server based on software number.
- Full Read: Extracts current data from the vehicle, including existing tuning.
2. Bench Reading
- Requires removing ECU and using power + boot cables.
- Provides deeper access to the memory content.

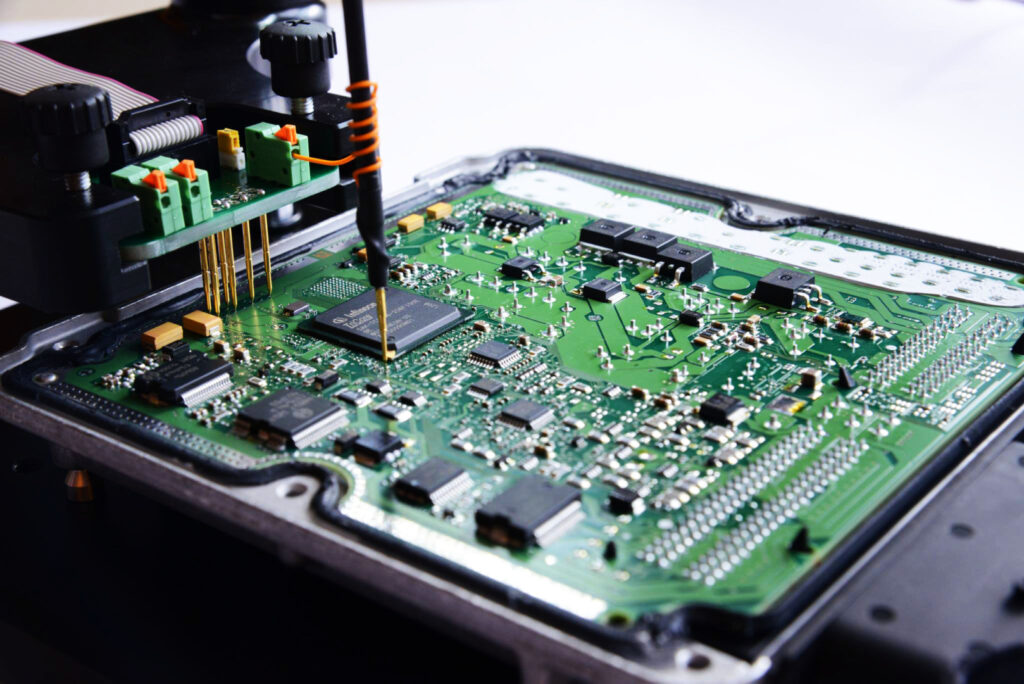

3. Boot Mode Reading
- Most advanced method using direct connection to the chipboard.
- Bypasses security systems like TRICORE in Bosch ECUs.
ECU Components Read
- Flash memory (maps and software)
- EEPROM (vehicle identity & configs)
- RAM (real-time data)
Tuning Maps
Petrol:
- Ignition timing
- Fuel injection timing
- Boost pressure
- Air-fuel ratio (AFR)
- Throttle vs airflow
- VVT maps
Diesel:
- Injection timing & quantity
- Rail pressure
- EGR maps
- Boost pressure
- Torque limiter maps
Advanced Modifications
- Catalyst Off – disable O2 monitoring
- Gearbox tuning – shift points, clutch pressure, torque reduction
Other Available Features
- Stage 1, 2, 3 tuning
- ECO tuning
- Pop & Bang
- No-lift shift (NLS)
- Start/Stop disable
- Speed limiter removal
- Exhaust flap control
- Hard rev cut
- DAMOS & map packs
Search Your File By:
- ECU Manufacturer
- ECU Type
- Hardware Number
- Software Number
Learn more about ECU tuning principles on Alientech's official website.
Understanding ECU Tuning Software and Tools
Modern ECU tuning relies on specialized software that allows reading, interpreting, and modifying the binary data stored within an ECU. Tools like WinOLS, ECM Titanium, KESSv2, K-TAG, and BitBox are commonly used by professionals to open ECU files and apply changes safely.
These tools enable access to maps for injection, ignition, torque, turbo boost, lambda control, and many more. The process involves creating backups of the original file, identifying map locations, editing values, and safely rewriting the modified file back to the ECU.
Understanding how to work with ECU tuning software requires knowledge of hexadecimal structure, automotive engineering, and the calibration logic behind each map. That’s why professional tuners often rely on damos files or map packs that describe each hex address and value inside the binary.
The Risks of Poor ECU Tuning
Not all tuning is safe or beneficial. Poorly written ECU tuning files can cause a number of issues, such as:
- Engine knocking due to advanced ignition timing
- Overheating or excessive fuel consumption
- Turbocharger damage from unsafe boost settings
- Increased emissions and DPF clogging
That’s why we always recommend working with certified ECU file services. At ASF Tuning, all tuning files go through multiple stages of verification and dyno testing to ensure reliability and performance.
Final Word on ECU Tuning Files
ECU tuning files unlock your engine's hidden potential — when handled properly. Whether you’re aiming for improved throttle response, more torque, fuel efficiency, or full-blown stage 3 performance, it all starts with the right tuning file.
Always use verified software, understand your ECU type, and work with professionals who know what they’re doing.
Frequently Asked Questions About ECU Tuning Files
Is ECU tuning safe for my car?
Yes, when performed by professionals using proper tools, ECU tuning is completely safe and even reversible.
Can I tune my ECU myself?
While DIY tuning exists, it’s highly recommended to use professionals due to the complexity and risk of damaging the ECU.
Will ECU tuning affect fuel consumption?
Yes, tuning can improve fuel efficiency in eco-tuning setups, or increase consumption in performance-focused remaps.
